Front wall for container roofing 10m width with easy-up entrance, PRIMEtex 2300, grey

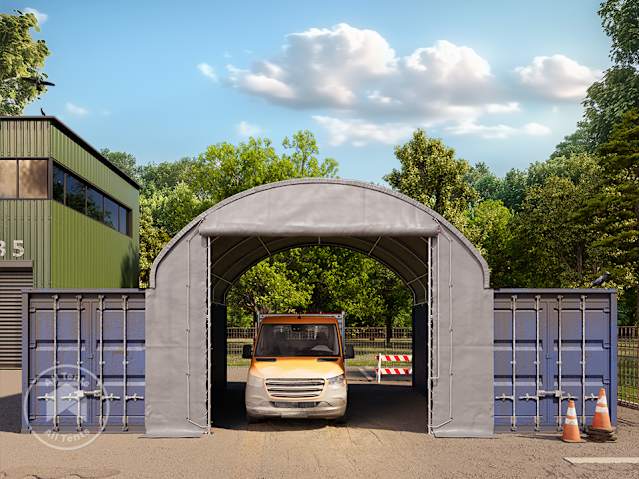

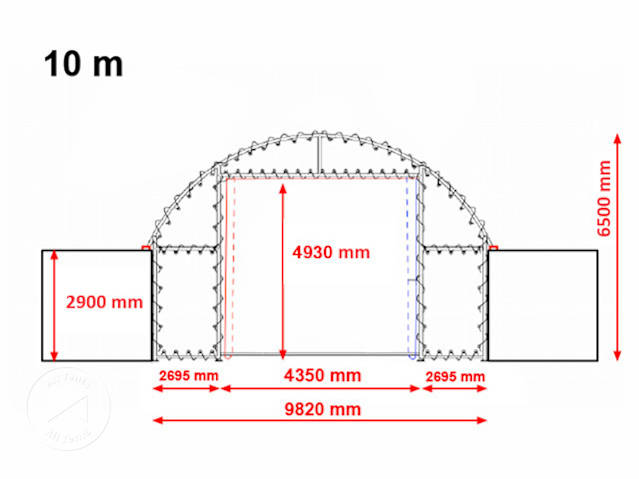

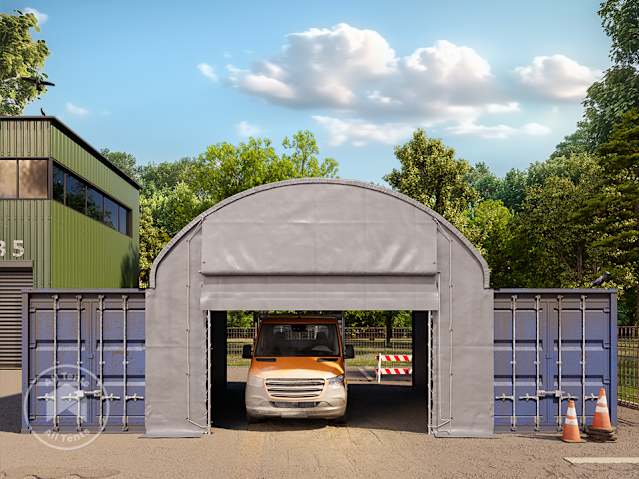

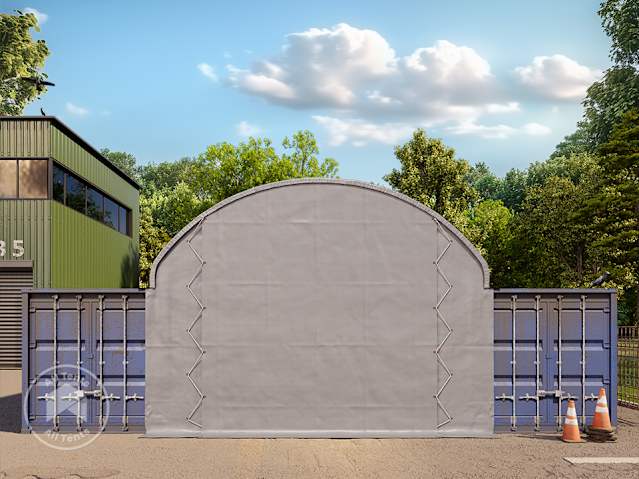

This front wall with a built-in roll-up door is designed for container covers with a width of 10 m. It provides additional protection against wind and weather and is made of a sturdy, corrosion-protected steel tube frame and an exceptionally robust cast PVC tarpaulin. The PVC material is UV-resistant, 100% waterproof, and offers three times the tear resistance of standard commercial PVC tarpaulins. The front wall is secured with tension ropes and features a large main door that can be easily opened and closed using a roll mechanism with a hand crank. For installation on soft ground, the package includes heavy-duty, fully galvanised solid steel ground anchors (approx. 100 cm long). The height of the container or the corresponding base structure should be approximately 2,9 m.

Frame

• Robust steel linkage protected against corrosion by galvanizing
• Steel tubes
  • Diameter: approx. 76 mm
• Connector
  • Durchmesser: approx. 60 mm
• Special tensioning cable system for fixing the tarpaulin
• Solid, 100 cm long solid steel pegs for mounting on soft floors

• In many cases, no building permit is required
• Easy assembly thanks to detailed assembly instructions and labelled parts
• download instructions now
• download the Safety instructions
• for erecting the frame we recommend: 1 lifting device (forklift, wheel loader, etc.)
• recommended for assembly: 1 rolling scaffold, scissor lift etc.
• store bought tools are sufficient for assembly
